Heat Treated Alloy Steel Piston

Features race inspired port configurations and variable rate shim stack technology to provide vehicle specific damping performance and optimum ride quality. A composite Teflon wear band offers low internal resistance and high compressive strength enhancing shock performance.

Spherical Rod End Assembly - Strut

High performance spherical rod end assembly designed for correct clearance and increased strength to suit your application. Fitted with Teflon-lined Commercial Grade spherical bearings for smooth articulation and longest life.

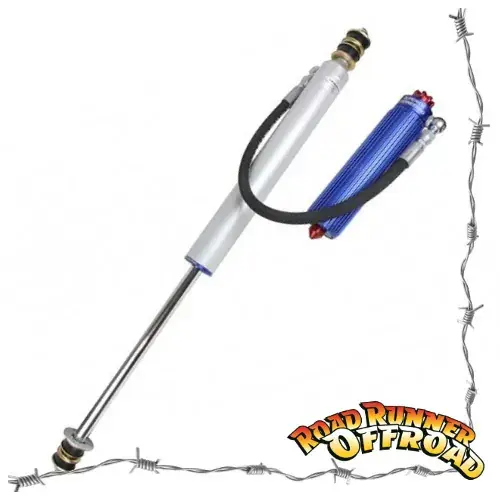

Remote Reservoir Canister

Remote Reservoir Canister for increased oil volume, and greater cooling capacity. Internal Floating Piston separates the shock Oil and Nitrogen eliminating Foaming or mixing of the oil and gas that produces shock fade.

Highest Quality Materials

CR3+ plated Bored and Honed cylinder tubes, Aircraft quality billet aluminium components, High pressure hydraulic hose and seals.

Plus the 20mm Hard-chromed shafts are designed for maximum strength and durability in lifted and performance applications.

Fully Rebuildable For Long Life

These Superior Remote Reservoir Shocks are fully Rebuildable, Serviceable and Upgradeable. All parts are carried in stock and allow the user to finely-tune, adjust and service their shocks, ensuring you get the longest life possible from your suspension.

Features

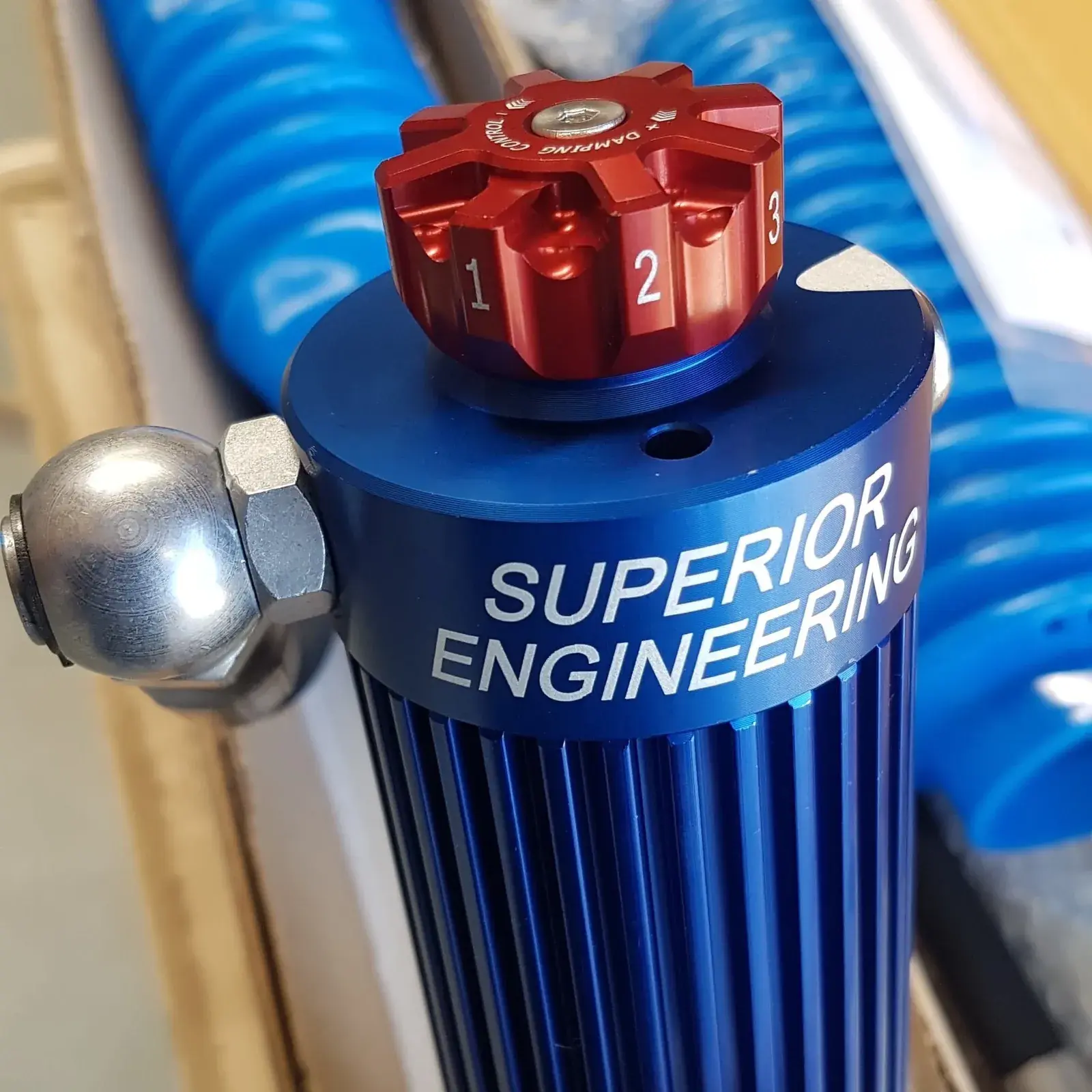

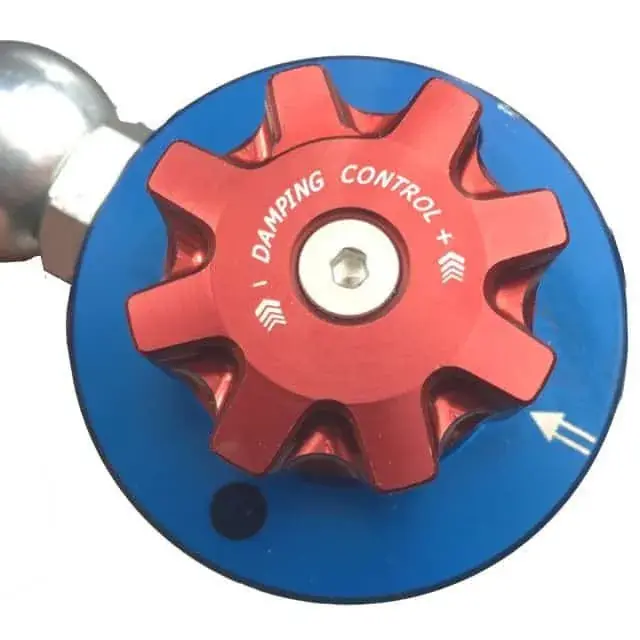

• 8 stage compression adjustment with a simple turn of the knob mounted on the remote reservoir
• 46mm Piston with Teflon
• 20mm super polished shaft
• 53mm outer body
• floating piston inside reservoir
• Cr+3 Surface finsh
• Unique Valving and Piston Design
• Longest travel remote reservoir for any given size lift

Length Front :

Open 660mm
Closed 392mm
Travel 268mm

Please note this product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.
