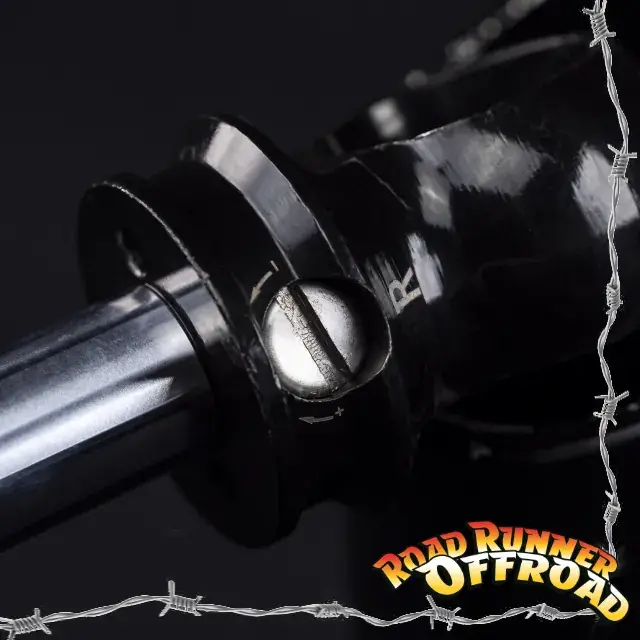

DOBINSONS ADJUSTABLE REMOTE RESERVOIR FRONT SHOCK ABSORBER

Suit: Toyota 80 & 105 Series



10x High-Speed Compression Adjustment Settings   20x Low-Speed Compression Adjustment Settings

15x Rebound Adjustment Settings



SHOCK ABSORBER SPECIFICATIONS

Shock Lengths
6" Front 728 MM OPEN, 432 MM CLOSED

Dobinson's latest monotube technology incorporates remote oil reservoirs. The valving is tested and tuned specifically for this vehicle. It features a 60mm bore, is fully rebuildable, and has a 3mm wall thickness. The induction-hardened rod and three-stage oil system prevent leaks. Each shock absorber is hand-built with precision, using the highest-grade German oil to provide a maximum temperature range. The positive separation between oil and gas prevents fade, and the single-tube body construction allows better heat control and dissipation. Each shock absorber is supplied with mounting clamps for each reservoir.





Dobinsons' monotube remote reservoir shock absorbers use the latest technology to give your vehicle superior control and comfort in all conditions.

The single-tube design and massive 60mm bore allow more oil capacity and better heat dissipation.

This design resists fade far more effectively than traditional twin-tube nitrogen or twin-tube foam-cell shock absorbers.

The shock lengths are designed to give maximum flex off-road, and the valving has been tested to suit harsh Australian conditions.

Also, the added benefit of being rebuildable.



Please note this product is an aftermarket product designed to fit the above-mentioned vehicle(s). Any mention of vehicle brand or model is solely to help establish the correct fitment for your vehicle and does not indicate that the part is manufactured by the original vehicle manufacturer.





(MRA59-A684)

SKU MRA59-A684
Model # MRA59-A683
Brand Dobinsons
Shipping Weight 8.5000kg
Shipping Width 0.100m
Shipping Height 0.100m
Shipping Length 0.700m
Shipping Cubic 0.007000000m3
