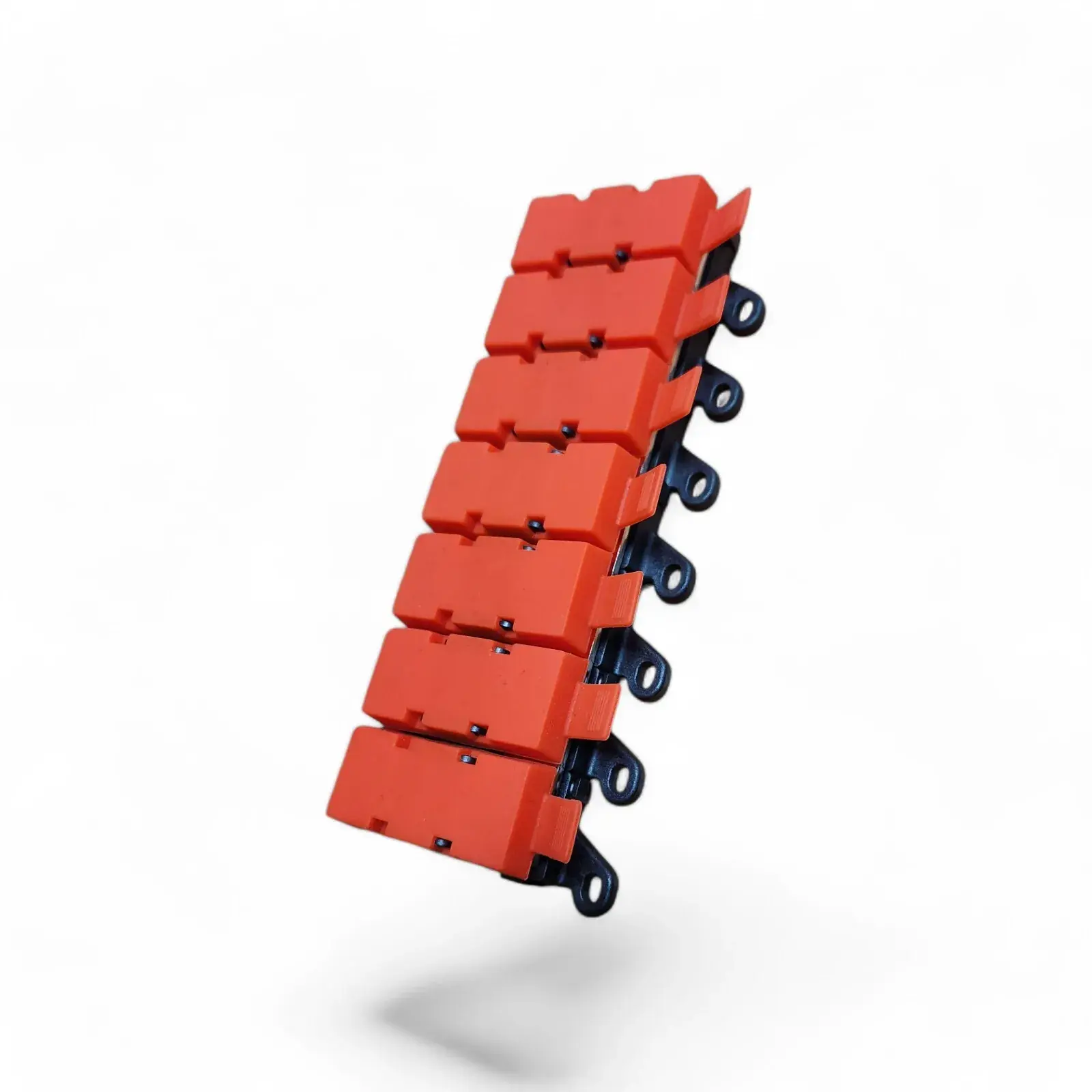

The 1-input, 6-output modular bus bar fuse holder is designed for accommodating three MIDI fuses, making it perfect for distributing power efficiently across multiple circuits. With a single input stud and three output positions, this holder is ideal for high-current applications, offering flexibility in both fuse selection and configuration. Sold without fuses, but also available with fuses, this durable holder ensures reliable performance for demanding setups.

Type: Modular bus bar fuse holder (1 input, 6 outputs)

Fuse Compatibility: Supports MIDI fuses (INCLUDED - PLEASE SELECT RATINGS)

Capacity: Holds 6 MIDI fuses

Application: Main branch primary fusing for high-powered systems

Current Rating: Maximum combined rating of 400A continuous

Operating Temperature: -40°C to 85°C (-40°F to 185°F)

Material: Silicone rubber cap (max 200°C), 94V0-grade base (max 230°C)

Studs: M8 stainless steel input stud, M5 stainless steel output studs

Torque Specifications:

Mounting: 22 in-lbs (2.5 Nm)

Fuse module: M5, 44 in-lbs (5 Nm)

Input module: M8, 88 in-lbs (10 Nm)

Package Includes: 1 x 6-way fuse holder (FUSES INCLUDED - PLEASE SELECT RATINGS)

(MIDIFUSE6WAYBUS-FUSED)

SKU MIDIFUSE6WAYBUS-FUSED
Brand Road Runner Offroad
Shipping Weight 0.3000kg
Shipping Width 0.025m
Shipping Height 0.100m
Shipping Length 0.100m
Shipping Cubic 0.000250000m3
