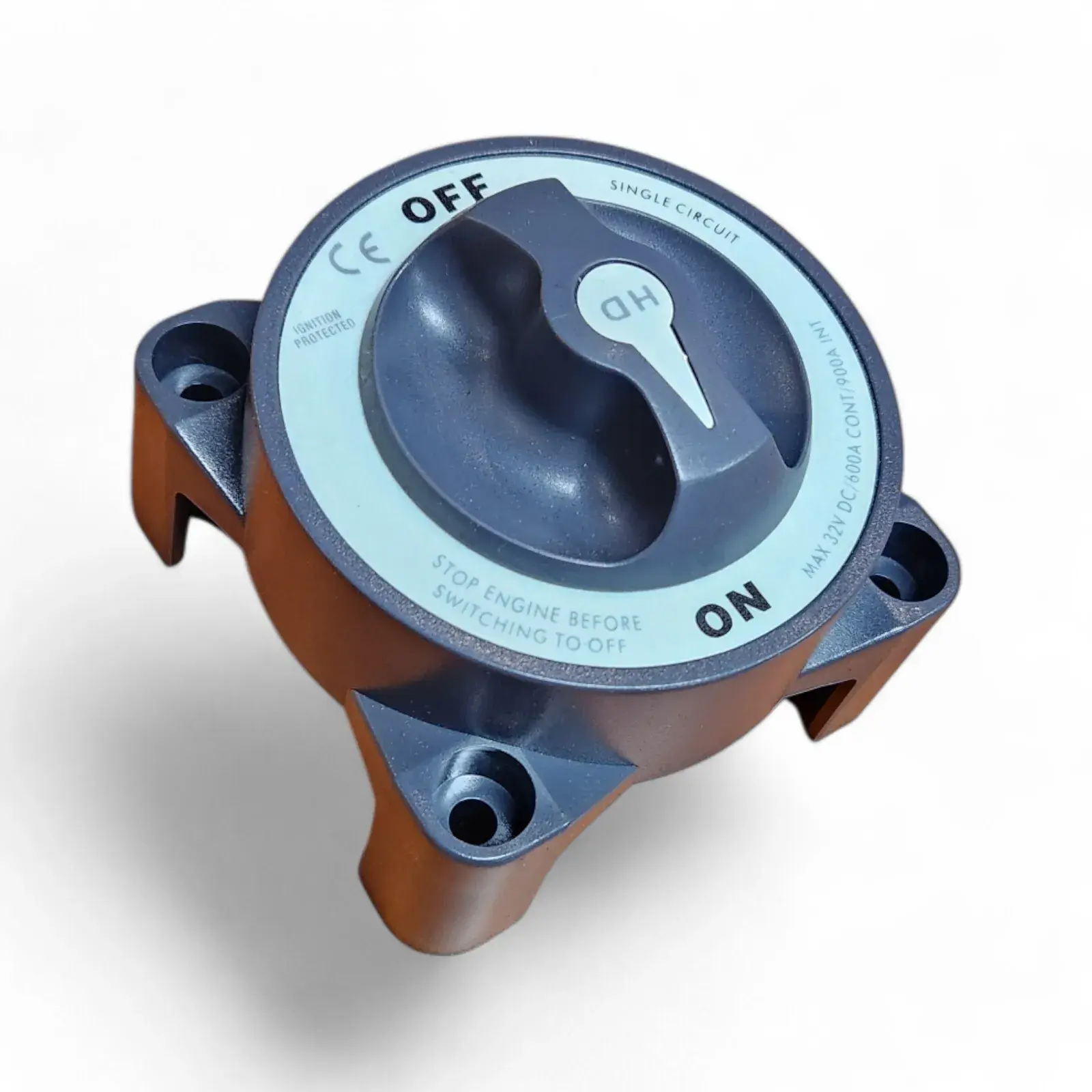

Single pole Winch Isolator

Enabling you to open or kill the power to your winch

Material: ABS, copper

Switch Type: Single circuit ON OFF
Color: Grey
Switch Position: 2
Battery Combination: No
Alternator Field Disconnect: Yes
Terminal Torsion: 220 in lb (24.86 Nm)
Continuous Rating: 600A
Intermittent Rating: 900A (5 minutes)
10 Second Start Up Rating: 2750A
Startup Rating 1 Minute: 1325A
Battery Input: 1
For 4/0 AWG Cable Clearance: Approx. 1.10in (27.94mm)

Number Of Cables To Meet Rating: Two cables
Rated Cable Size: 4/0 AWG (120mm sq)
Mounting Holes: Accepts 1/4in (M6) Screws
Terminal Size: Approx. 1/2in (M12)
