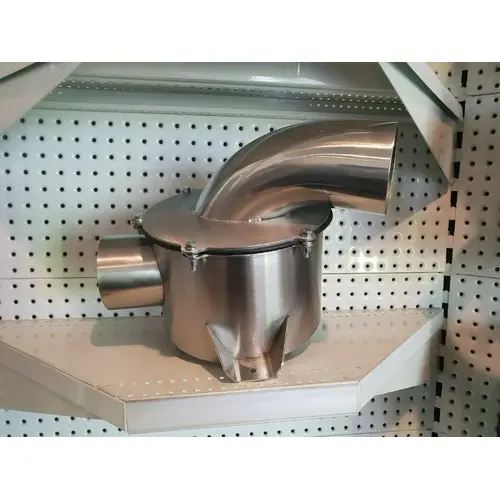

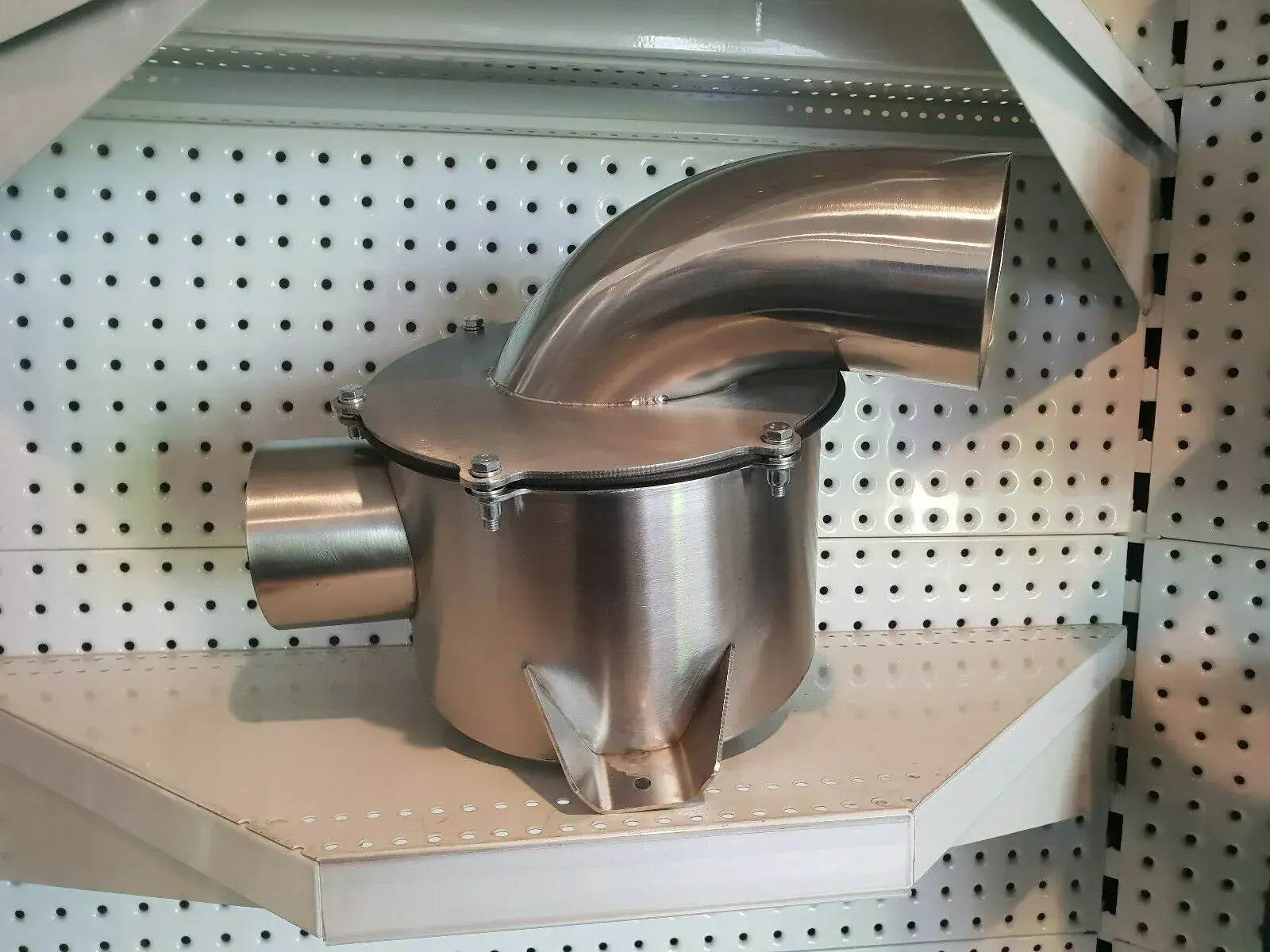

Patrol Docta Customs HighFlow ZD30 Airbox

to suit GQ Nissan Patrol



When undertaking an engine conversion, people want an easy to fit airbox



This Stainless Steel airbox is modelled around the popular ZD30 Airbox but includes these key features:

Simple to mount; requires only one 6mm hole to be drilled in inner guard and utilises 2 existing holes behind the headlight

Mounts on 3 rubber cushion mounts to prevent fatiguing of the inner guard

Installed with a genuine Donaldson VacuatorTM Valve to drain any water that may find its way into your airbox

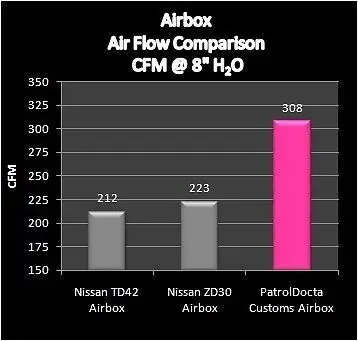

Flows a massive 308CFM @ 8" H2O, 38% flow increase over standard ZD30 airbox and 45% increase over the TD42 airbox

Retains the readily available Nissan style ZD30/TD42 filter element

Supplied with a high quality filter element

3.5" mandrel bent unrestricted outlet. ZD30 and TD42 airboxes both have significant airflow restrictions in their outlets.

3.5” inlet 10mm lower than a ZD30 airbox

Manufactured from 304 Stainless Steel

Fully TIG Welded

***100% AUSTRLIAN HAND MADE AND PROVEN***



Most snorkels are easily connected by using a rubber joiner and hose-clamps to join to our airbox inlet.

  The Airbox does fit into GU Patrols as well as GQ patrols. This installation does require custom plumbing to connect the airbox to your intake. Factory pipes will not connect.



Please note this product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.

(PD018)

SKU PD018
Model # PD018
Brand Patrol Docta
Shipping Weight 4.9000kg
Shipping Width 0.300m
Shipping Height 0.300m
Shipping Length 0.300m
Shipping Cubic 0.027000000m3
