New!

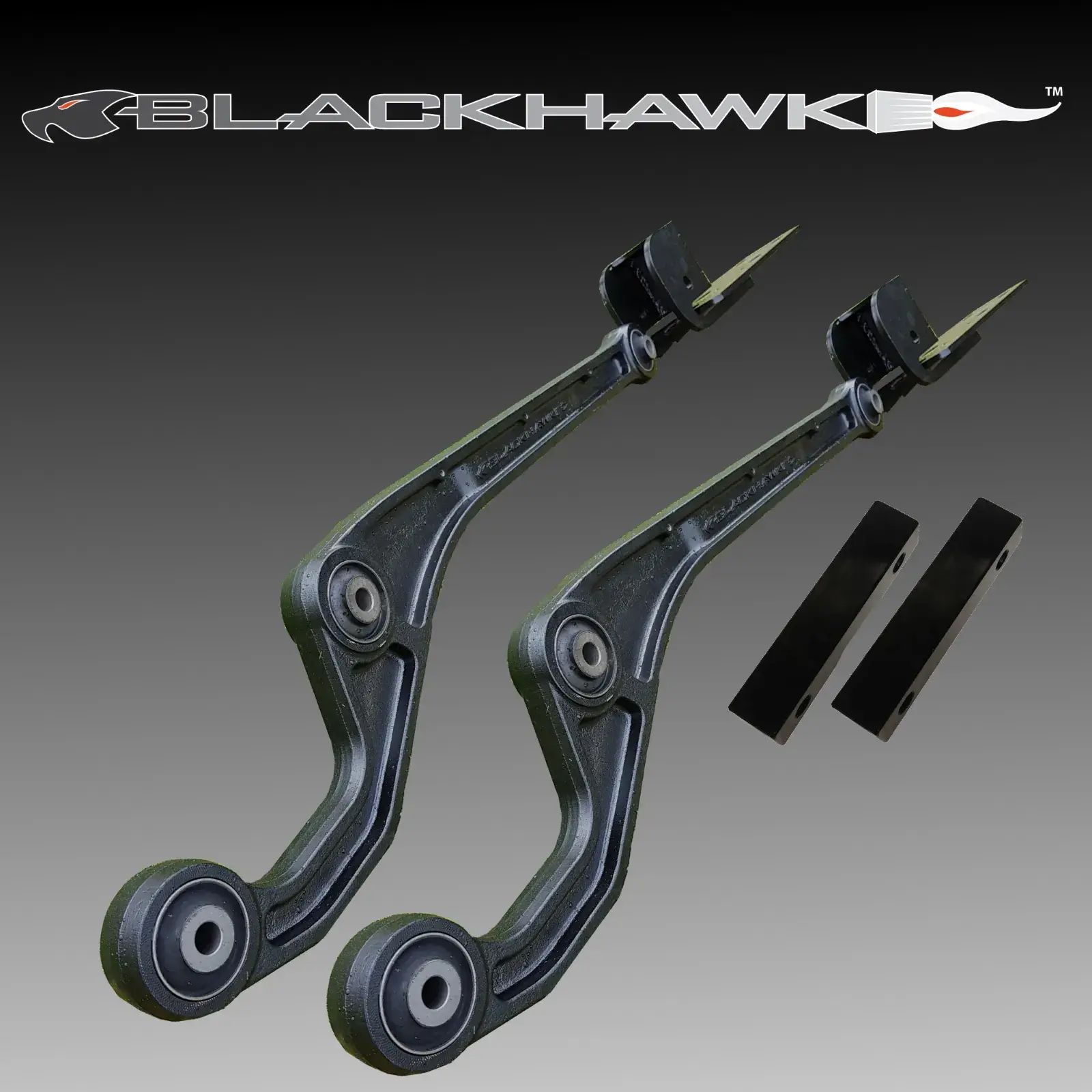

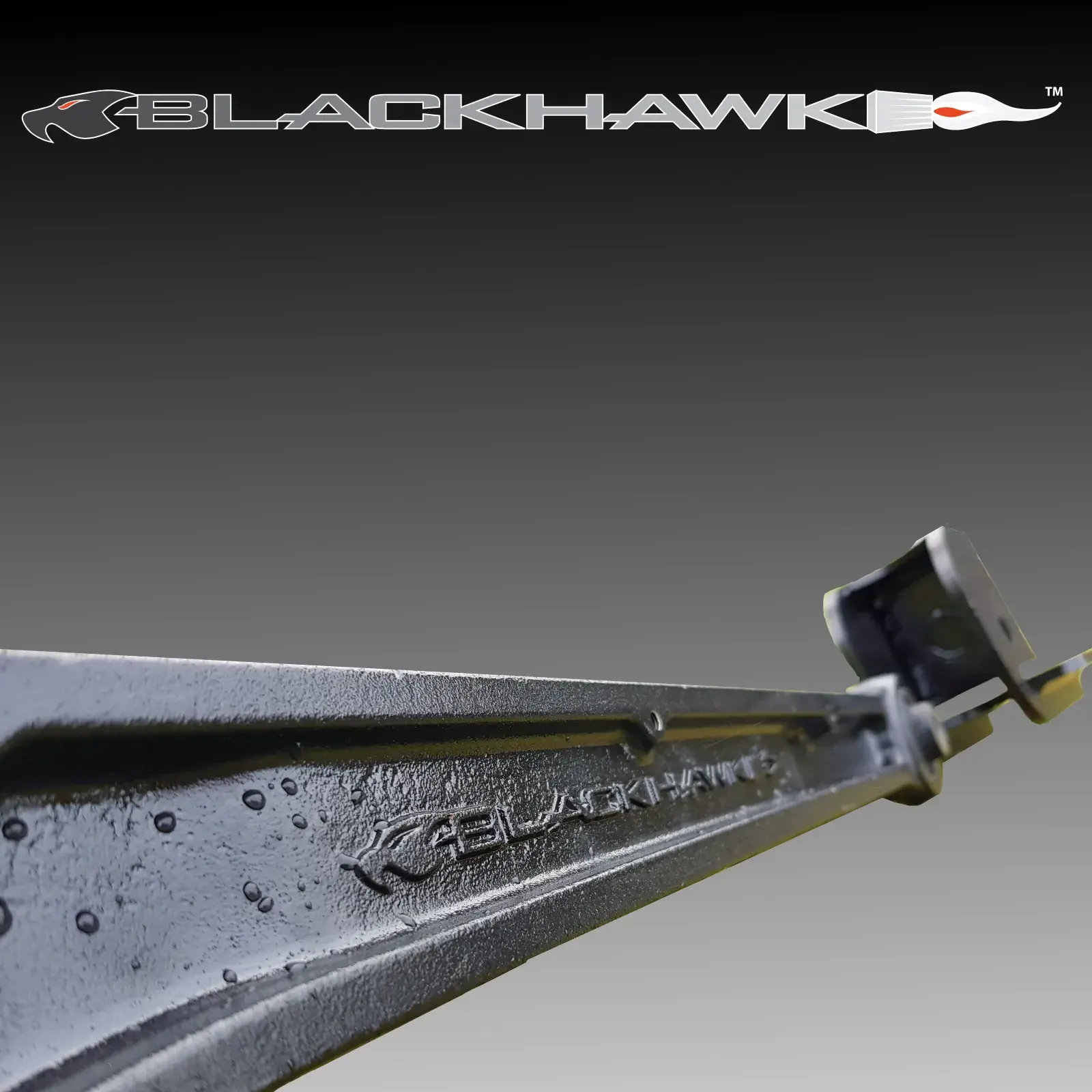

Blackhawk 4x4 Patrol Radius arms

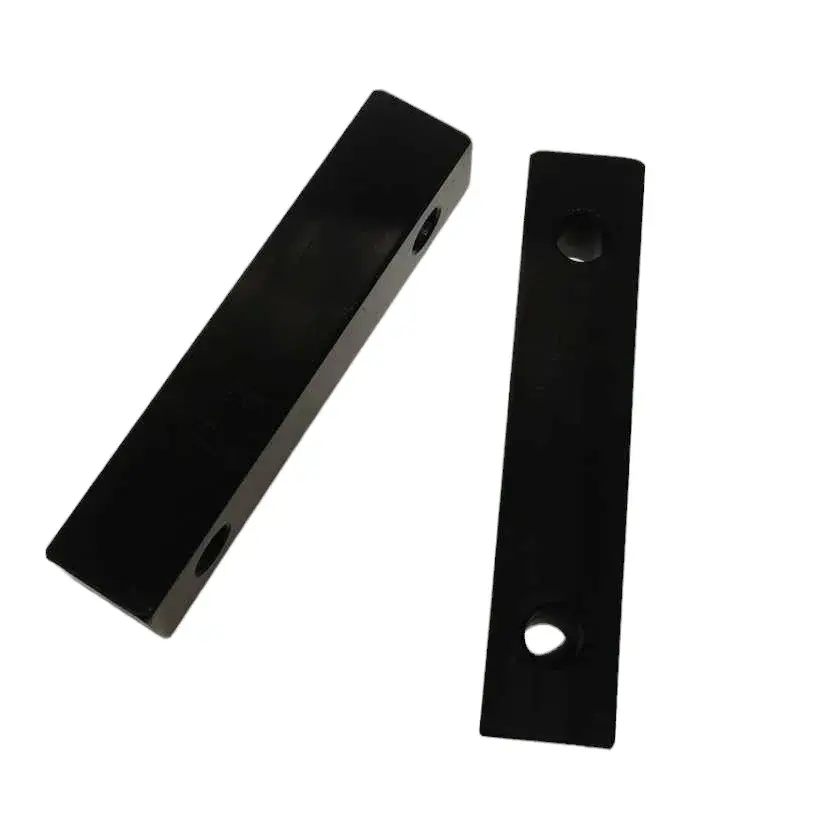

Inc Bonus Sway Bar Spacer  x 2

to suit GQ and GU Nissan Patrols

(For GQ )If You have your front swaybar fitted you will need to Contact us as you will need to purchase different sway bar D bushes and D bracket.

Forged & Heat treated 4150 Arm Material

High Clearance design

Lifetime Bush warranty

Compliable with the NCOP with an increased front axle weight of 1800kgs suitable for GVM upgrades and engine conversions.

If you are getting your vehicle engineered, ask your engineer to contact Black Hawk / Road Safe for a copy of supporting documents.



Increased caster - suits  Minimum 75mm of lift  to 100mm lift

Newly designed Pivot Box for increased ground clearance over standard Drop Box design - improved clearance over factory.

Increased clearances to other components

Moves Diff forward 15mm to clear larger tyres.

Increased length to correct wheelbase on lifted vehicles

E-coated for improved corrosion resistance and maximum durability

Only 17.5kg per side!

Featuring the Australian made Hybrid Rubber bushings with limited lifetime warranty

Australian Design Registration 202013441



Please note this product is an aftermarket product that is designed to fit the above mentioned vehicle(s), any mention of vehicle brand or model is only to allow you to establish the correct fitment for your vehicle, and is not indicating that the part is manufactured by the original vehicle manufacturer.

(RANPBV2-plusSS)

SKU RANPBV2-plusSS
Model # RANPBV2
Brand Blackhawk 4x4
Shipping Weight 40.0000kg
Shipping Width 0.550m
Shipping Height 0.250m
Shipping Length 1.000m
Shipping Cubic 0.137500000m3
