PART TIME KIT

and

AISIN HUB CONVERSION

to suit: TOYOTA LANDCRUISER 105 SERIES LIVE AXLE

01/1998 TO 07/2007 onwards Part Time Kit with Aisin hubs and Replacement CV joints

(DOES NOT SUIT IFS MODELS)

Toyota owners looking to run High quality Aisin hubs on a full-time vehicle, this kit solves your problem.

This kit Suits 105 series live axle Land Cruisers with HF2A full-time 4WD transfer case manufactured from 01/1998

All 105 series landcruisers with full-time 4wd have a Drive hub to CV Spline which does not allow genuine Aisin hubs to be fitted.

The kit comes supplied with replacement quality Japanese CV Joints which is a direct fit to genuine Aisin free wheel hubs.

This combination gives you a Higher strength free-wheeling Hub, waterproofing in the hub selector ring and overall higher quality that other brands cannot offer.

POSITIVES OF PART-TIME KIT

• Better Fuel Consumption, an improvement of Minimum 5%, in some cases up to 10% have been reported
• With improved steering, vehicle no longer pulls hard when powering out of a corner
• Improved steering, lighter and more direct.
• Improved acceleration, vehicle no longer powering the front diff, drive shafts and cv's
• Longer service life on front driveline components due to not being driven

Kit contains:

ABS Live Axle Models

When ABS-equipped live axle vehicles are fitted with a Part Time 4WD kit, the ABS sensor reading from the CV joints becomes inoperable and the ABS warning light is displayed on the dash. The ABS relocation kit moves the sensor from the CV joints to the wheel hubs and operates as per factory specifications.

See our store for an ABS Sensor relocation kit if required

Viscous Centre Diffs

Vehicles fitted with viscous coupled centre diffs can still use our part-time 4WD kit. To complete the installation, you will be required to purchase the 'Centre Diff Lock' button as used on the GXL models. The switch is an easy plug and play with the necessary plug & wiring already provided in the Toyota wiring loom.

How does it work?

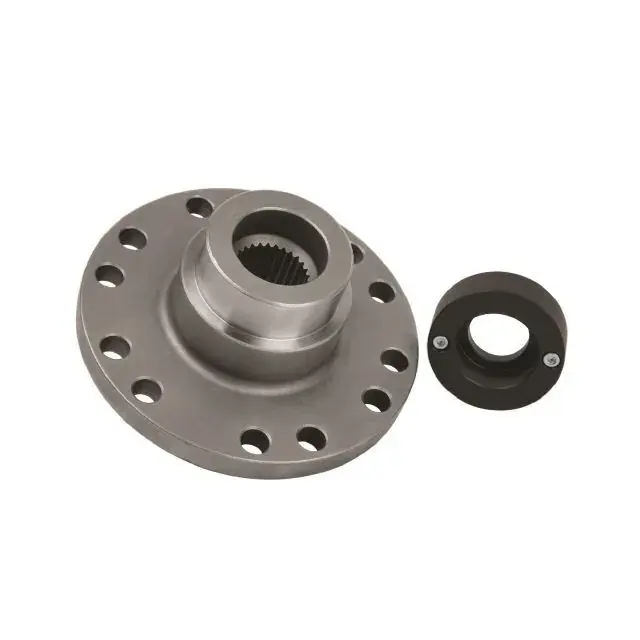

The centre diff becomes completely inoperative as the spider gears & the rear side gear are completely removed. The rear spool supplied in the kit is manufactured from heat-treated gear steel & internally splined to allow permanent drive to the rear wheels. The front side gear is retained, as it is required to support the front output shaft in the main housing.

The kit is supplied with freewheeling hubs & is fitted to prevent the front diff, axles & drive shaft from turning while the vehicle is being driven.

What are the benefits?

There are several benefits to consider when converting your Land Cruiser 80 or 100 series to Part time 4WD. The steering no longer tends to pull hard when powering out of a corner which adds to less wear & tear on the steering components such as tie rod ends & steering box. The steering is also more direct or positive.

There is a marked improvement in fuel economy an average of 5%-10%. The acceleration is also improved due to the reduction in losses associated with driving the front differential, drive shaft & CV joints.

With these components no longer being driven, a considerable increase in their service life can be expected.

Can we fit it myself?

The kit is supplied with full fitting instructions which are step by step. If you consider yourself mechanically minded & you can read instructions (believe me, not everyone can read) then yes, you can fit the kit yourself. There is no need to pull the transfer case out of the vehicle. Remove the back cover of the transfer case to fit the spool supplied as per the instructions. The freewheeling hubs are fitted as per the hub installation guide. There are no special tools required. We are only a phone call away if you experience any difficulty.

What if we can't fit the kit?

No problem, your local mechanical workshop will be more than qualified to fit the kit for you or contact our sales team for an installation quote.

How do we engage 4WD once the kit is fitted?

Simply press the centre diff lock button located on the dash, engage the hubs & select low range. If your vehicle has a viscous coupled diff your vehicle will not be equipped with a centre diff lock button & you will need to fit one. The fitting instructions will have a photo of the switch with a part number supplied to enable you to purchase the switch from your local Toyota parts supplier.

How do we know if our vehicle is fitted with a viscous coupling?

A vehicle fitted with a viscous coupling does not have a centre diff lock button on the dash.

Do we need to fit a diff lock button when we fit the part-time kit?

Yes, you do. This is to select 4WD in high range. The part number of the button is provided in the fitting instructions

What happens to our Viscous coupling in the transfer case?

The viscous coupling is no longer required & is removed from the transfer case.

How does this affect our ABS?

If you have the IFS 100 Series Land Cruiser your ABS will not be affected as the ABS sensor is located on the wheel hub. The live axle models have the ABS sensor located on the CV joint. By fitting the freewheeling hubs the CV joint is prevented from turning therefore affecting the ABS system & causing an ABS malfunction light to appear on the dash. To prevent this from happening you can leave the hubs engaged whilst ABS is required.

See our store for ABS Sensor relocation kit if required
