RRO9500 lbs 12v Winch

Finally.. A winch we are proud to put our name on!

The Road Runner Offroad range of winches have taken years of searching for the strongest, most reliable and best value for money winch. We beleive we have come up with the ultimate.

Great performance, reliability, strength and a warranty we stand by and at a price that represents great value for money.



  • Fully sealed high output (6hp) series wound motor.
  • Heavy Duty modul 1.75 3 stage planetary gearbox.

  • Gearbox and motor sealing Rings for Excellent waterproofing (Can be submerged underwater)
  • Large recovery hook for easy attachment of tree truck protectors.

  • Hardened steel gears.
  • Twin lip sealed drum.
  • Automatic brake.
  • Stainless steel hardware.
  • Sliding ring gear freespool.
  • Sealed solenoid pack with silver-alloy contacts.
  • Safe and light synthetic rope included.
  • Heavy Duty cross bracing for winch strength



We stand by our winches with a 5 year warranty against manufacturing defects.*

On top of this, if you have a problem in the first 6 months of ownership we will repair the issue regardless of if it was caused by defect or misuse!**

* Exclusions apply,

** 6 month repair does not cover damage caused to the rope or cable.



Features Winch Motor and gearbox sealing rings for waterproofing

Replacement battery size for the Remote Control is 23A

Specifications
Rated line pull: 9500 Lbs (4310kgs) single line
Motor: Series wound 6.0 hp /4.4kw,12V DC
Gear Train: 3 stage planetary
Gear ratio: 212:1
Clutch: Sliding Ring gear
Braking action: Automatic in the drum
Fairlead: Aluminum hawse fairlead for synthetic rope
Synthetic rope: Ø9.5mm ×26m
Drum size: 2.5"X9.0"(63mmX224mm)

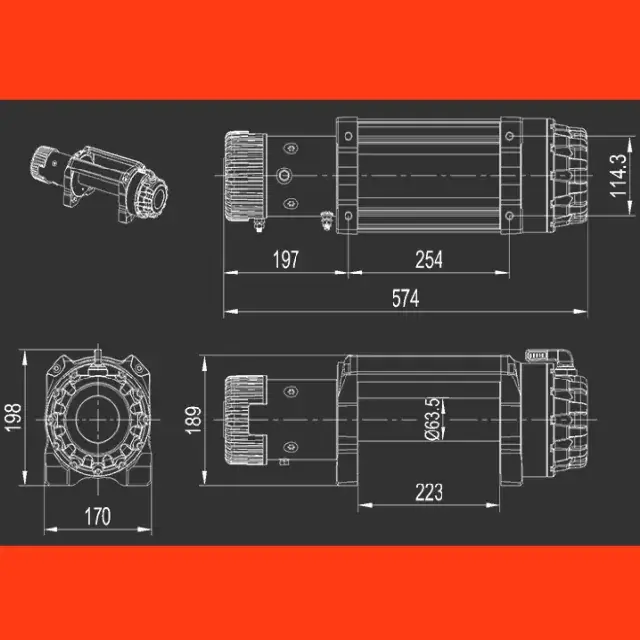

Dimensions: 23"X6.7"X8.4"( 584mmX170mmX214mm)
Mounting bolt
pattern:
10"×4.5"(254mm×114.3mm)
Battery: Recommended 650 CCA minimum for
winching 25 square mm,72?(1.83m)
N.W: 33KG
Packing: 620mm X 200mm X 390mm

Line speed and motor current (first layer)
Line pull
Lbs
0
2000
6000
8000
9500
Kgs
0
907
2722
3629
4309
Line speed
FPM
29.5
13.5
9.2
7.5
6.7
MPM
9
4.1
2.8
2.3
2.1
Motor current
Amps
70
120
170
220
300

Line pull and cable capacity
Layer of cable
1
2
3
4
Rated line pull per layer
Lbs
9500
8070
7250
6600
Kgs
4310
3660
3289
2994
Cable capacity per layer
Ft
17.7
40.7
67.9
98.4
M
5.4
12.4
20.7
28





(E9500s)

SKU E9500s
Model # E9500s
Brand Road Runner Offroad
Shipping Weight 33.0000kg
Shipping Width 0.230m
Shipping Height 0.400m
Shipping Length 0.520m
