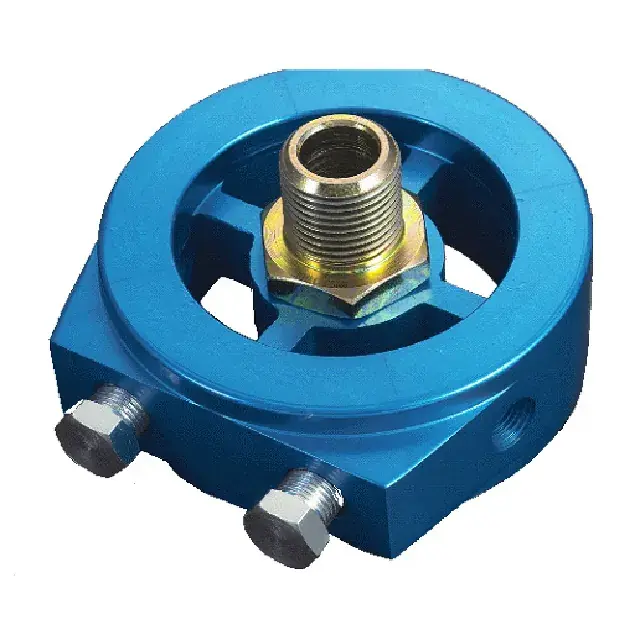

Oil Temp/Pressure Sensor adaptor





Some features of this adaptor...

  • Anodized Alloy construction
  • Suits 3/4 UNF 16
  • Easy leak free fitting
  • 4outlets @ 1/8 NPT - Suitable for Oil Pressure/Oil Temp
  • 4 x 1/8NPT plugs supplied
  • Rubber O ring seal

The following list is a guide for applications...



This unit mounts between the block and the oil filter, Colour is as pictured






Below is some info on our gauges that we also sell to suit these adaptors...

Main features of the Race Spec gauges...

You can also recall your highest (or lowest in some gauges) point that was recorded on the gauge after you've had your race! This also becomes a very useful tuning tool.

All gauges are FULL electronic, with electronic sensors (where applicable)

The boost gauges tested in AUS were within .3psi of the dyno PSI. (0.3 psi being worst, 0.1 psi being best)

A sensor is included with the gauge to make installation easy.

Gauges come with FULL wiring kit, nothing else is needed, everything is plug_and_play (Although power needs to be hard wired)

Once one gauge has power, a plug'n'play quick connect wire strand can be used between gauges. This makes installation VERY easy. (Refer to pictures)

Every gauge comes with ELECTRONIC sensor to suit (except A/F ratio gauge)

The gauge comes with a simple gauge mount (Usually this satisfies most customers and no additional gauge mounting hardware is required)

All race spec gauges come in white display, red needle lighting with a dimming wire to blue for the face. (Dimming can be plugged into your dash lights for activation with parkers or with a switch or omitted completely or the gauge can be wired to be constantly dark blue.)



Used, tried and tested in Aus by the Road Runner Offroad Race cars and Social cars for a few years now.

(RTOPOT34UNF16)

SKU RTOPOT34UNF16
Model # RTOPOT34UNF16
Brand Racetech Gauges
Shipping Weight 0.2000kg
